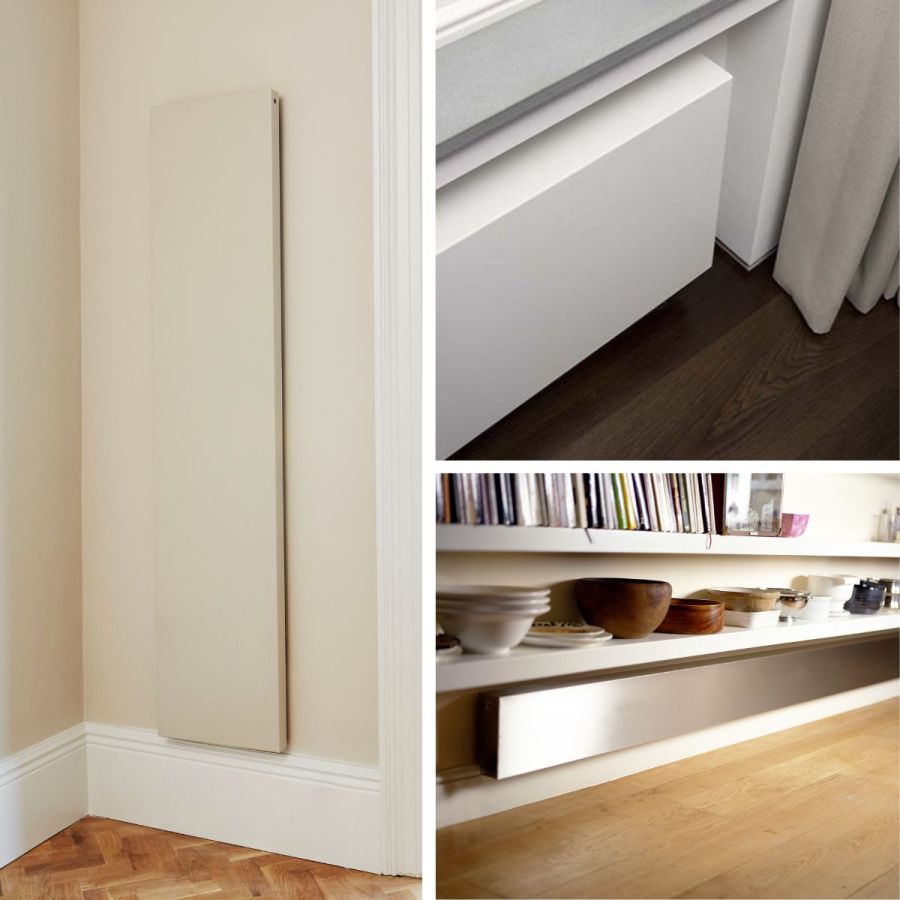

Outline radiator

Beautiful British radiators in cool shapes, Outline provides the ultimate solution for awkward as well as straight-forward spaces. Designed and manufactured in the UK, Outline combines beauty with technical excellence and is the top-of-the-range when it comes to flat panel heating.

  • Made in the UK
  • Huge range of sizes and finishes
  • Hidden valve options
Reset Options
£760.54
In stock
SKU
OUTLINE
Calculate My Heat Requirements

Lead Time:Approximately 6 to 8 weeks

What our Customers Say About Us...

""

From

Know what heat output you require? Enter it into the below field and we'll let you know if a radaitor is right for your room.

Not sure what output you need to fill your room with heat? Complete the form below to calculate your required heat output.

My house was built after 2002 or is well insulated (part L compliant)

My room is north facing.

My room has French doors / large window.

My room has single glazed windows.

My room is exposed & colder.

Please select your Delta T Value

Using the dropdown below, please set your Delta T Value for use throughout the site.

Set Delta T Value

IMPORTANT INFORMATION

  • Lead time: All Outline radiators are by special order in approximately 6 to 8 weeks. Special order means that an order cannot be cancelled once manufacturing has commenced.
  • Finishes: For “Your Colour”, choose from a wide selection of RAL colours – swatches available on request. Other RAL colours, which are not in the standard colour range, are also available for a surcharge – please ask for more information. Maggie, Fop and Compost are special textured paint finishes – swatches available on request. Alternative finishes on this design of radiator are also available, please see Supermirror, Cliff, Gong!, Blackboard and Woody ranges.
  • Design: Bespoke sizes are also available – please ask for a quote. The Outline is a modular aluminium high output radiator with a separate front fascia panel. This means that the radiator has a low surface temperature and acts as a convector heater and emits heat from the space at the top of the radiator between the wall and the rear of the radiator as opposed to the front panel. There is a 25mm gap from wall to rear of radiator on all Outline models.
  • Optional towel rails: These are available on request – please ask for more information.
  • Material: Made of aluminium with a mild steel or stainless steel front fascia panel.
  • Delivery: We offer delivery to most addresses on the UK mainland (excluding some remote areas).
  • Fixings: Radiators are supplied with the necessary fixings i.e. wall bracket, plugs, bushes and vents. Side connections are supplied as standard. Screws are not supplied.
  • Depth: 50mm or 95mm
  • Projection from the wall: 50mm deep models = 75mm / 95mm deep models = 120mm (measurements exclude chalk holder)
  • Valve connections: Underside valve connections as standard. Hidden thermostatic valves are available for a surcharge using our Hinge and Bracket system. Side valve connections are also available for extra charge. Please contact our sales team to ensure the neatest installation.
  • Valves and finishing touches: These not included as there is now so much choice available. See our Valves page for valves and accessories to complete the look.
  • Pipe centre measurements: Approximate pipe centres can be provided if you wish to install your pipework in advance of receiving your radiator.
  • Manufacturer's guarantee: 5 year manufacturer's guarantee against manufacturing defects.
  • Heat outputs: These are shown at operating temperatures of Delta T 50. To alter this, please use our handy Delta T Value Changer shown on every product.
  • Water treatment: The manufacturer's guarantee will only be valid if your radiators are installed in accordance with British Standards. This means that, on completion of installation, the system should be properly flushed and filled to remove debris and minimise the presence of solid particles and chemical residues, which may cause corrosion and damage within the system. Corrosion inhibitor should be used in accordance with British Standards and should take into account the particular metals within the system.
  • Terms and Conditions: All sales are subject to our standard Ts and Cs; a copy can be downloaded from our website.
  • Tested to meet EN442 certification
  • CE Marked
  • VAT: The prices shown are inclusive of VAT.
  • VAT: The prices shown are inclusive of VAT.
  • More Information
    Featured Product No
    Price shown is for white finish. For more information see ADDITIONAL INFORMATION page.
    Download Printer Friendly Price List Printer Friendly
    HeightWidthFinish Watts DT50 BTUs DT50 Price incl VAT
    600mm600mmStandard Colour 577 1968 £760.54
    1500mm240mmStandard Colour 549 1873 £814.74
    1800mm240mmStandard Colour 668 2280 £887.38
    430mm1000mmStandard Colour 625 2132 £932.17
    600mm800mmStandard Colour 769 2625 £936.80
    1000mm430mmStandard Colour 702 2394 £941.45
    1500mm240mmStandard Colour 1098 3747 £949.24
    240mm1500mmStandard Colour 372 1270 £1,009.45
    600mm600mmStandard Colour 1058 3609 £1,021.87
    1800mm240mmStandard Colour 1336 4558 £1,041.95
    800mm800mmStandard Colour 1086 3706 £1,080.59
    1000mm430mmStandard Colour 1228 4189 £1,094.51
    1500mm430mmStandard Colour 1098 3747 £1,159.38
    600mm800mmStandard Colour 1442 4919 £1,171.80
    430mm1000mmStandard Colour 1187 4049 £1,188.86
    600mm1200mmStandard Colour 1153 3935 £1,190.36
    240mm2000mmStandard Colour 520 1774 £1,233.65
    430mm1500mmStandard Colour 937 3197 £1,270.79
    1800mm430mmStandard Colour 1336 4558 £1,290.85
    240mm1500mmStandard Colour 719 2453 £1,310.93
    800mm800mmStandard Colour 2037 6949 £1,354.21
    1500mm430mmStandard Colour 1921 6555 £1,363.50
    1000mm1000mmStandard Colour 1754 5984 £1,445.42
    1800mm430mmStandard Colour 2338 7976 £1,524.22
    430mm2000mmStandard Colour 1311 4474 £1,579.92
    600mm1600mmStandard Colour 1538 5248 £1,593.84
    600mm1200mmStandard Colour 2211 7545 £1,615.43
    430mm1500mmStandard Colour 1811 6178 £1,641.77
    240mm2000mmStandard Colour 967 3299 £1,675.76
    1000mm1000mmStandard Colour 3333 11372 £1,844.27
    600mm1600mmStandard Colour 2980 10167 £2,060.68
    430mm2000mmStandard Colour 2435 8307 £2,124.04
